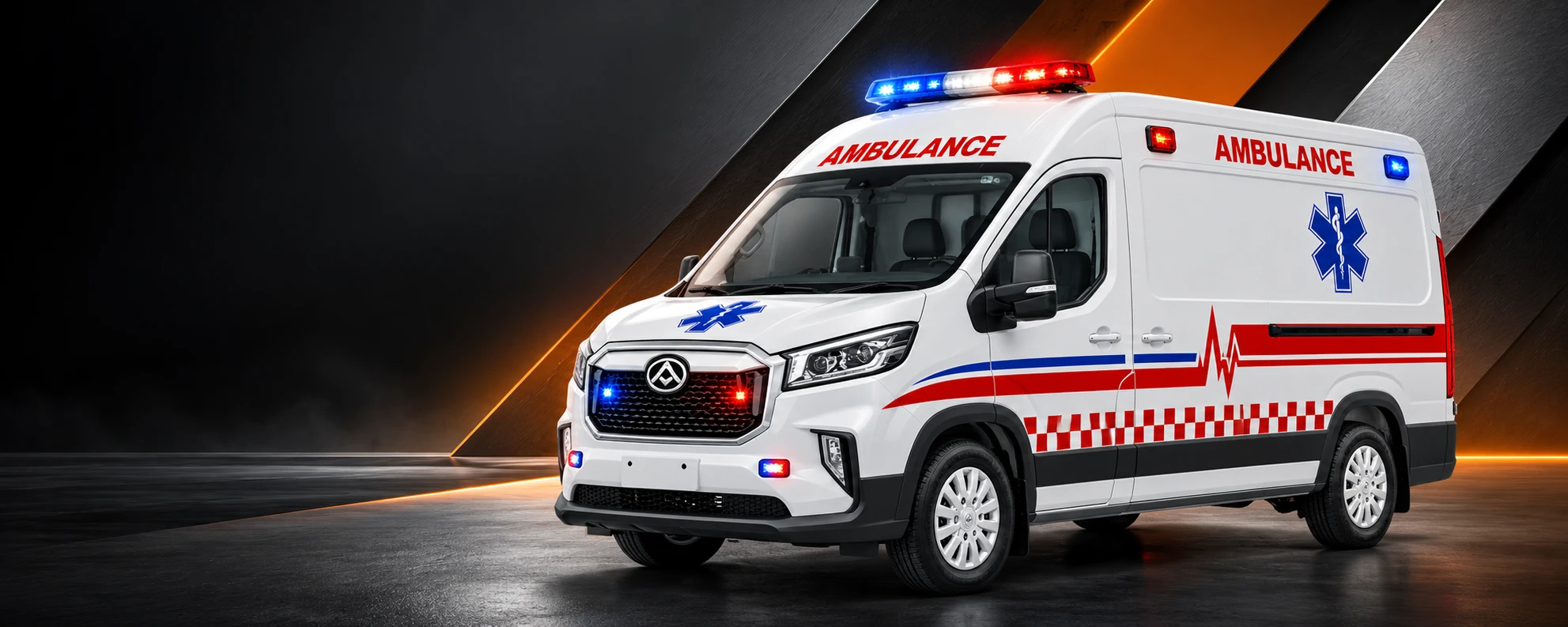

Maxus eDeliver 9 EV Ambulance with emergency livery and light bar
Zero-Emission Medical Fleet

Maxus eDeliver 9
EV Ambulance

A zero-emission emergency medical vehicle platform — clean, quiet, and built for BLS / ALS conversion on the proven SAIC Maxus L3H2 chassis.

Contact Us
445km
WLTP Urban Range
100kWh
Battery Capacity
47min
DC Fast Charge 10–80%
1.49t
Max Payload

Why an Electric Ambulance

Lower running costs and a cleaner, quieter ride — aligned with the Green Hospital policies of leading private hospitals and the ESG criteria now appearing in public fleet tenders.

−65%

Energy Cost

Compared with an equivalent diesel ambulance over the same duty cycle.

−60%

Maintenance Cost

Fewer moving parts, no engine oil or transmission service, regenerative braking.

ESG

Green Hospital Ready

Zero tailpipe emissions and low noise — a fit for Green Hospital strategies and energy-efficiency specs in government and private e-bidding.

Full Specifications

Maxus eDeliver 9 — L3H2, N2 commercial vehicle (GVW 4.25 t), rear-wheel drive.

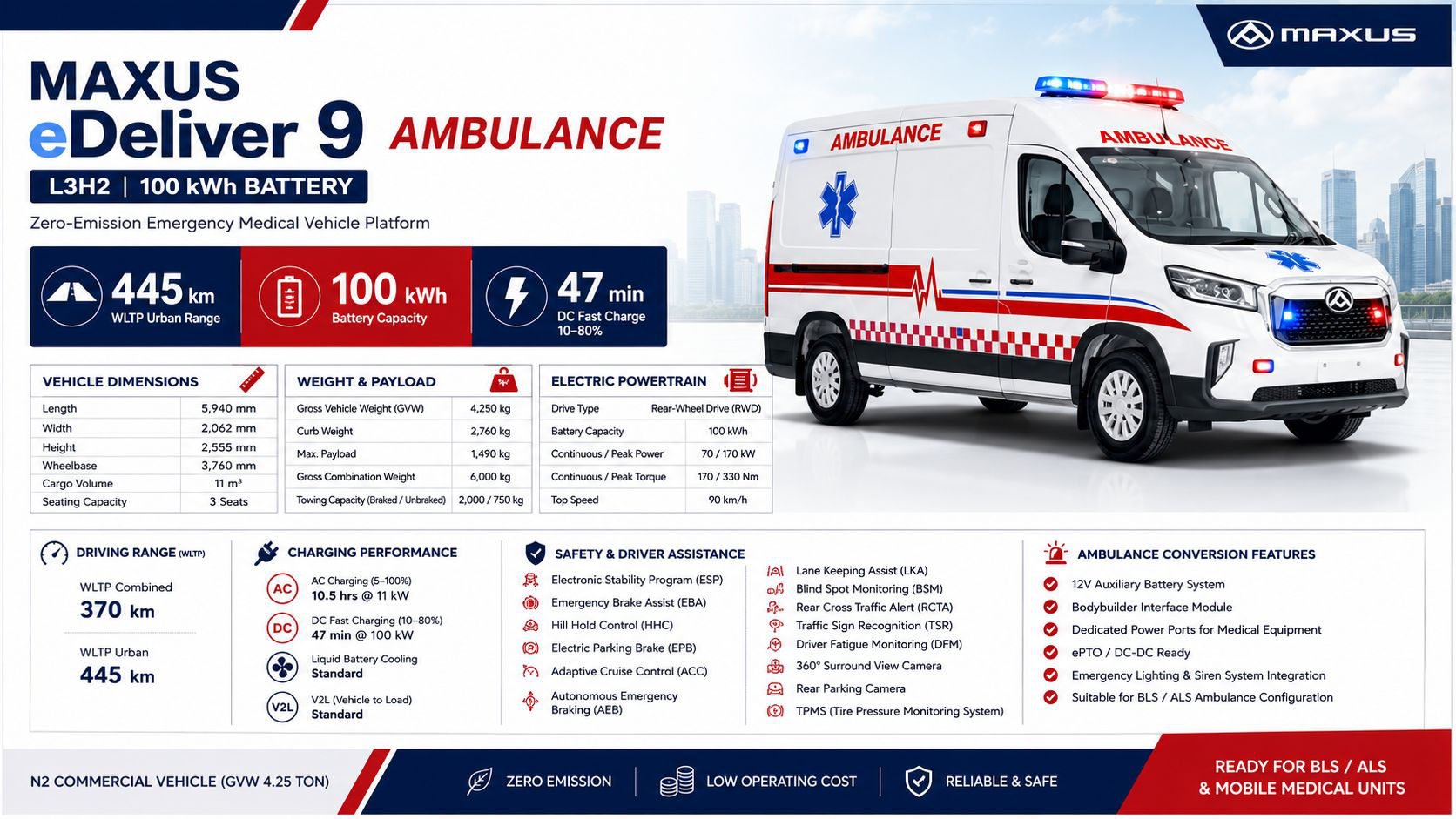

Download Spec Sheet

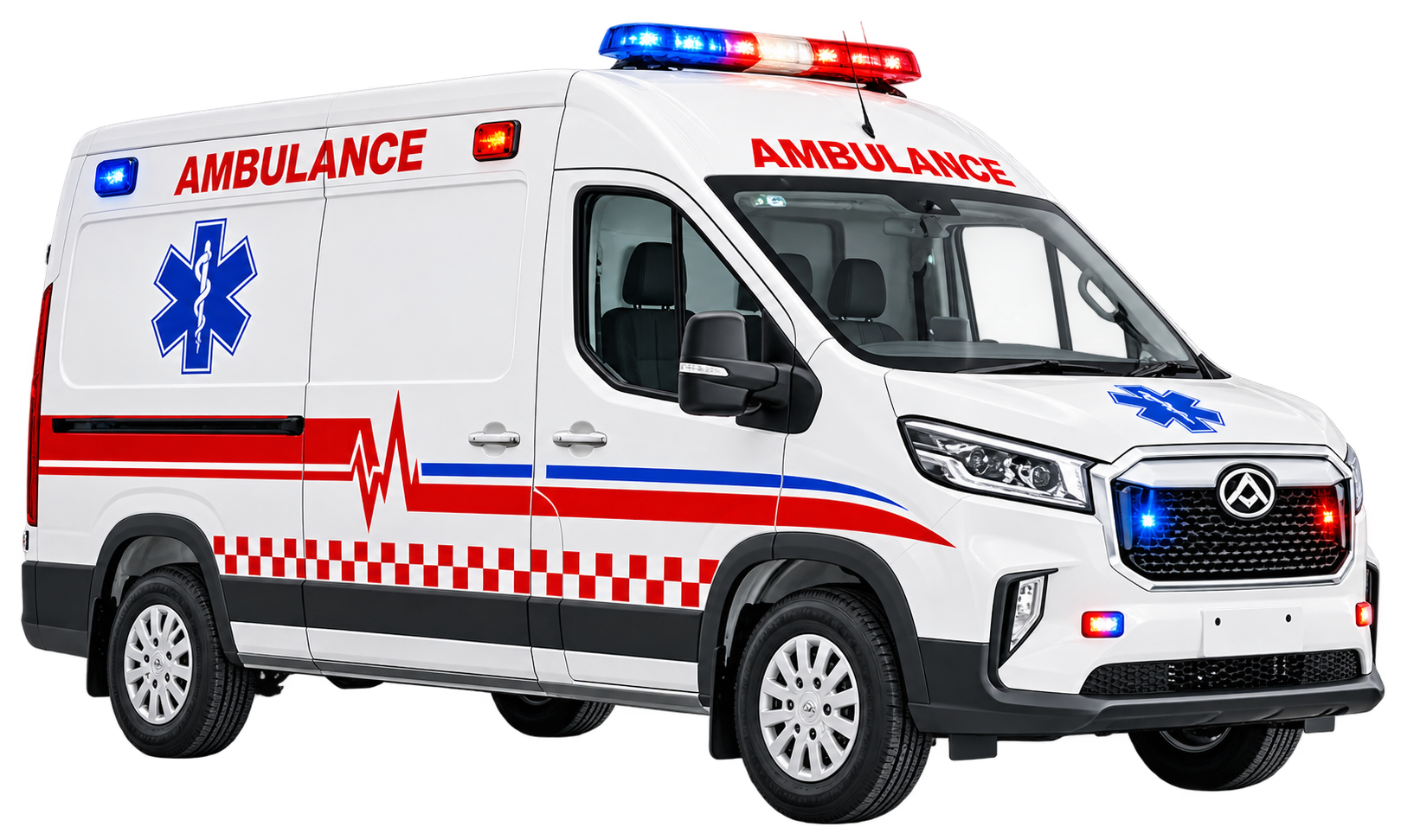

Maxus eDeliver 9 Ambulance, front three-quarter view

Dimensions

Length
5,940 mm
Width
2,062 mm
Height
2,555 mm
Wheelbase
3,760 mm
Cargo volume
11 m³
Seating (cab)
3

Weight & Payload

Gross vehicle weight
4,250 kg
Curb weight
2,760 kg
Max payload
1,490 kg
Gross combination
6,000 kg
Towing (braked)
2,000 kg

Powertrain

Drive type
RWD
Battery (LFP)
100 kWh
Power (cont. / peak)
70 / 170 kW
Torque (cont. / peak)
170 / 330 Nm
Top speed
90 km/h

Range & Charging

WLTP urban
445 km
WLTP combined
370 km
DC 10–80% @ 100 kW
47 min
AC 5–100% @ 11 kW
10.5 h
Battery cooling
Liquid
V2L (vehicle-to-load)
Standard

Safety & Assistance

Stability / braking
ESP · EBA · AEB
Cruise
ACC
Lane & blind spot
LKA · BSM · RCTA
Driver monitoring
DFM · TSR
Cameras
360° + rear
Tyres
TPMS

Ambulance Conversion

12V auxiliary battery
Yes
Bodybuilder interface
Yes
Medical power ports
Dedicated
ePTO / DC-DC
Ready
Lighting & siren
Integrated
Configurations
BLS / ALS

Mounting structure rated to the 10G equipment-anchorage safety standard for medical conversions. The downloadable spec sheet covers the full factory specification — Maxus eDeliver 9 Ambulance L3H2, 100 kWh.

BLS / ALS Conversions

Two conversion levels on the same platform, built to public-health medical vehicle standards.

BLS

Basic Life Support

Clearly zoned patient cabin with easy-clean ABS walls, onboard oxygen system, and a complete set of first-response equipment.

ALS

Advanced Life Support

Adds a powered stretcher, ventilator, advanced defibrillator/monitor, and a negative-pressure ventilation system for infectious-case transport.

Equipment / SystemBLS (Basic)ALS (Advanced)
Negative-pressure ventilationOptionalStandard
Patient stretcherStandardPower-load system
DefibrillatorAED onlyAdvanced defibrillator / monitor
Oxygen system2,000 L with regulator set2,000 L with regulator set
V2L medical power supplyStandardStandard

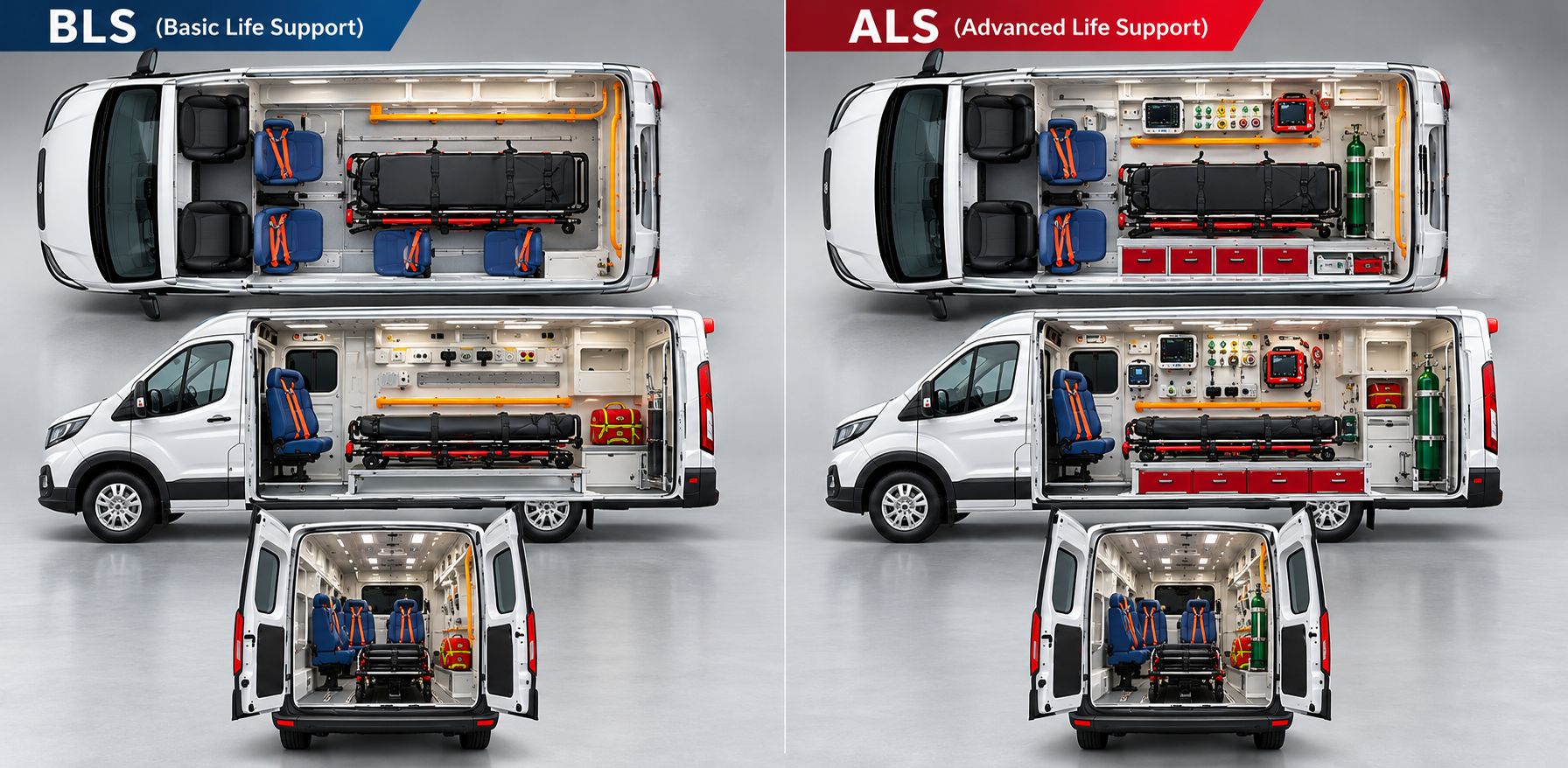

BLS and ALS ambulance interior layout drawings — top, side, front and rear views
Interior layouts — BLS (left) and ALS (right) on the Maxus eDeliver 9 RWD L3H2.

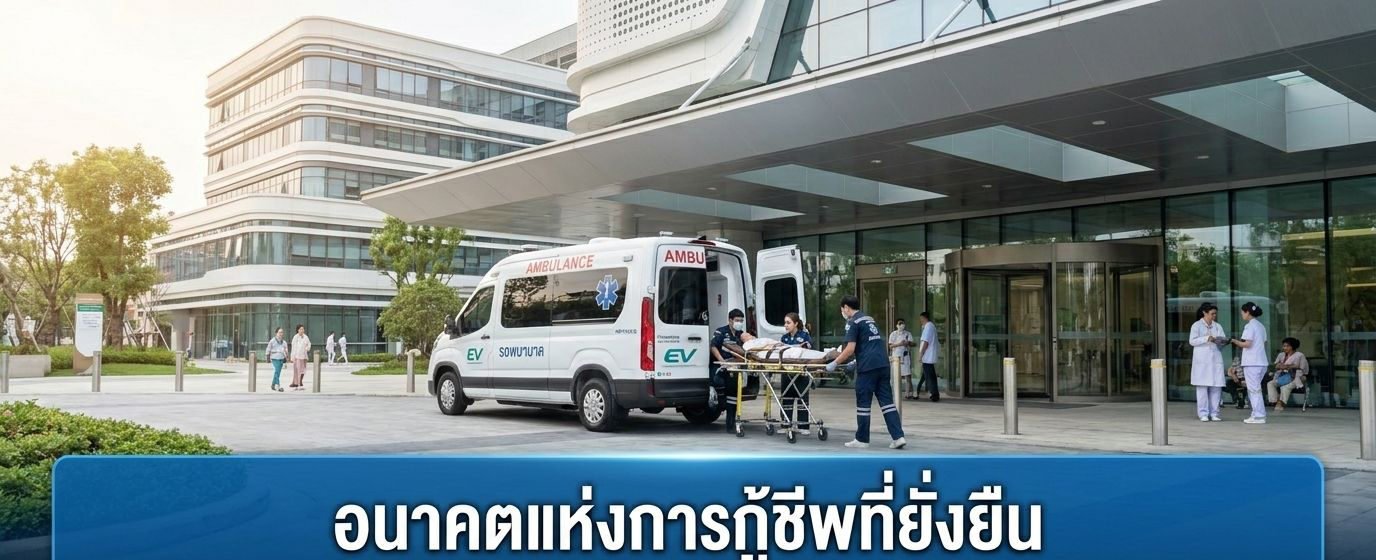

EV ambulance at a hospital entrance

The Future of Sustainable Rescue
